Understanding Double Eccentric Butterfly Valves: Features, Benefits, and Applications
On this page
Double eccentric butterfly valves are increasingly being recognized for their reliability, efficiency, and cost-effectiveness in a range of industrial applications. They provide superior performance in controlling the flow of various fluids, gases, and slurries, particularly in applications where tight shutoff, high durability, and low maintenance are crucial. This article delves into the design, advantages, and specific uses of double eccentric butterfly valves, providing a comprehensive understanding of why these valves are an ideal choice for many industries.
This double eccentricity (or double offset) reduces the friction between the disc and the seat, resulting in smoother operation and a longer lifespan of the valve. The design also significantly reduces wear and tear, which can lead to leaks and operational failure in conventional butterfly valves. The double eccentricity makes these valves particularly effective in applications where precise, leak-free control is essential.

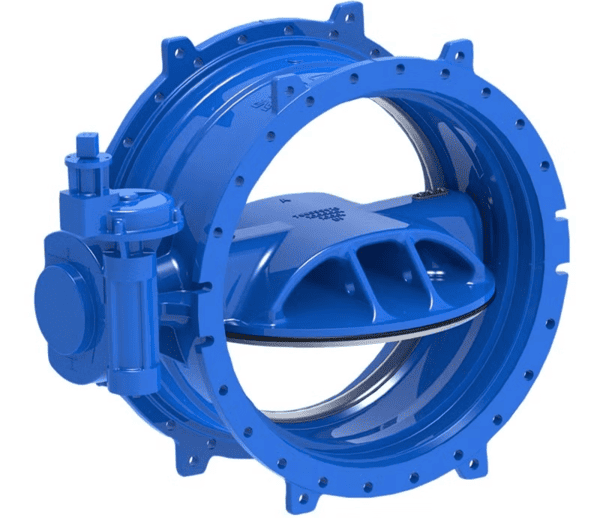

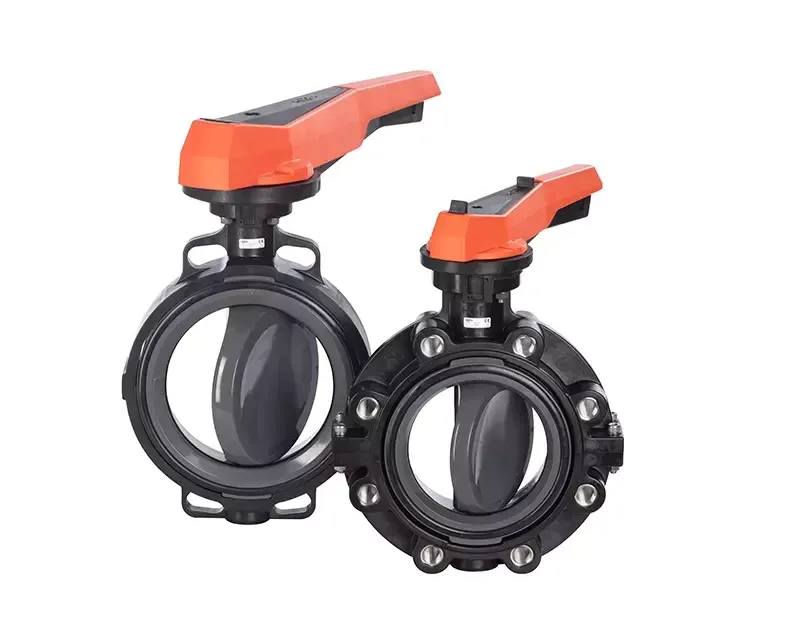

What is a Double Eccentric Butterfly Valve?
A double eccentric butterfly valve, also known as a "high-performance butterfly valve," features a unique design that distinguishes it from traditional butterfly valves. The term “double eccentric” refers to the offset geometry of the valve’s disc and shaft. In simple terms, both the shaft and the valve disc are positioned off-center relative to the body. This design ensures that the valve disc rotates in such a way that it does not come into direct contact with the valve seat during the initial stages of opening or closing.This double eccentricity (or double offset) reduces the friction between the disc and the seat, resulting in smoother operation and a longer lifespan of the valve. The design also significantly reduces wear and tear, which can lead to leaks and operational failure in conventional butterfly valves. The double eccentricity makes these valves particularly effective in applications where precise, leak-free control is essential.
Where Are Double Eccentric Butterfly Valves Used?
Double eccentric butterfly valves are versatile and can be employed across various industries. However, they are most commonly used in water supply, wastewater treatment, and large-scale industrial operations. Some of the key applications include:Water Supply and Distribution
Double eccentric butterfly valves are often used in water supply systems, particularly in underground installations. They are ideal for use in water pipelines, sewage treatment plants, and stormwater management systems. Compared to traditional gate valves, these butterfly valves offer a more cost-effective and space-efficient solution, especially in large sizes. Since they require a smaller burial depth and can handle high-flow conditions with ease, they are becoming the preferred option for municipal and industrial water management.
Wastewater Treatment
In wastewater treatment facilities, where valves must withstand challenging media (such as sewage and chemical byproducts), double eccentric butterfly valves offer an excellent combination of durability, tight sealing, and ease of maintenance. Their ability to provide a secure shutoff ensures that they are a reliable choice for applications where preventing leaks and maintaining flow control is critical.
Chemical Processing and Power Generation
The ability of double eccentric butterfly valves to handle high temperatures, pressures, and corrosive media makes them suitable for chemical processing plants, refineries, and power plants. Whether controlling the flow of steam, water, or hazardous chemicals, the performance and reliability of these valves in demanding conditions are unmatched.
Oil and Gas
Double eccentric butterfly valves are also used in oil and gas pipelines and processing plants, where they help control the flow of liquids and gases under high pressure and temperature conditions. Their low-maintenance design and ability to operate under extreme conditions make them ideal for such heavy-duty applications.
HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, these valves are used to regulate the flow of air or fluid, helping to maintain consistent performance in large-scale commercial and industrial buildings.
While these valves are often used underground, particularly in water supply systems, they are also employed in above-ground applications where space constraints and cost considerations make their compact design a distinct advantage.
While these valves are often used underground, particularly in water supply systems, they are also employed in above-ground applications where space constraints and cost considerations make their compact design a distinct advantage.
Key Features of Double Eccentric Butterfly Valves
1. Optimized Disc Design for High Performance
The disc of a double eccentric butterfly valve is designed with advanced Computational Fluid Dynamics (CFD) simulations to minimize pressure loss and improve flow control. By optimizing the disc shape, these valves can provide a more efficient flow path, leading to reduced energy consumption and less operational wear.
The disc is engineered to maintain a precise seal while minimizing the contact area with the valve seat. This ensures that when the valve is open, there is minimal friction, which in turn reduces wear on the components and ensures a longer operational life. Additionally, the valve’s seat design is optimized to provide secure fixation in the correct position, ensuring a reliable function every time.
The rubber used for the disc seals, typically EPDM (Ethylene Propylene Diene Monomer), is of superior quality, providing an excellent sealing capacity while reducing the overall amount of rubber required. This allows for lower closing torques and reduced friction during valve operation. EPDM seals are highly durable and resistant to various chemicals, making them suitable for harsh industrial environments. The EPDM sealing is also approved by various standards organizations, including DVGW, KIWA, and WRAS, ensuring compliance with international quality standards.
The disc is engineered to maintain a precise seal while minimizing the contact area with the valve seat. This ensures that when the valve is open, there is minimal friction, which in turn reduces wear on the components and ensures a longer operational life. Additionally, the valve’s seat design is optimized to provide secure fixation in the correct position, ensuring a reliable function every time.
The rubber used for the disc seals, typically EPDM (Ethylene Propylene Diene Monomer), is of superior quality, providing an excellent sealing capacity while reducing the overall amount of rubber required. This allows for lower closing torques and reduced friction during valve operation. EPDM seals are highly durable and resistant to various chemicals, making them suitable for harsh industrial environments. The EPDM sealing is also approved by various standards organizations, including DVGW, KIWA, and WRAS, ensuring compliance with international quality standards.
2. Advanced Shaft Design and Sealing
The shaft design in a double eccentric butterfly valve is one of the key components that contribute to its durability and low-maintenance performance. Unlike traditional butterfly valves, which may use uncoated raw iron shafts prone to corrosion, the shafts in these valves are coated and protected to resist wear and corrosion.
In addition, the shaft sealing is replaceable under pressure, which simplifies maintenance procedures. This feature is especially beneficial in applications where continuous operation is required, as it allows for easy replacement of the seals without needing to shut down the entire system.
The sealing materials used include EPDM for the inner seals and NBR (Nitrile Butadiene Rubber) for outer seals. This combination ensures tightness from both inside and outside the valve, while protecting the shaft from external contamination and harsh environmental conditions.
In addition, the shaft sealing is replaceable under pressure, which simplifies maintenance procedures. This feature is especially beneficial in applications where continuous operation is required, as it allows for easy replacement of the seals without needing to shut down the entire system.
The sealing materials used include EPDM for the inner seals and NBR (Nitrile Butadiene Rubber) for outer seals. This combination ensures tightness from both inside and outside the valve, while protecting the shaft from external contamination and harsh environmental conditions.
3. Locking Mechanism for Added Security
Some double eccentric butterfly valves are equipped with a locking device that allows the valve disc to be locked in place during maintenance or when performing gearbox replacements. This feature ensures that the valve disc remains in the open or closed position, preventing any accidental movement during repairs or system adjustments.
4. Low-Friction PTFE Bearings
To further enhance the valve’s efficiency, low-friction PTFE bearings are used in the shaft assembly. These bearings help to reduce the operating torques, allowing the valve to open and close more easily with less force. The use of PTFE also ensures that the bearings are resistant to wear and can perform in both low and high-temperature environments.
5. Bi-Directional Operation
A unique feature of double eccentric butterfly valves is their bi-directional operation. This means that the valve can handle flow in either direction, providing greater flexibility for installation and system design. While valves larger than DN700 typically have an arrow indicating the preferred flow direction, they still maintain the ability to operate in both directions without affecting performance.
6. Slim, Lightweight Design
Double eccentric butterfly valves are designed to be compact and lightweight, which simplifies handling and installation, especially in tight spaces. This slim design also reduces the strain on the environment, as it requires less material and reduces transportation costs.
Common Issues with Standard Butterfly Valves and How Double Eccentric Valves Address Them
While butterfly valves are a popular choice in many industries, they can suffer from several common issues, particularly in harsh operating conditions. Two of the most frequent problems are leakage and valve seizing.
1. Leakage
Standard butterfly valves often experience leakage due to the valve disc pinching the rubber seat when in the open position. This can create a visible divot in the rubber seat, allowing water or other fluids to leak when the valve is closed. The optimized disc design and sealing mechanism of double eccentric butterfly valves prevent this issue by ensuring that the disc does not contact the seat in the initial stages of operation, maintaining a tight shutoff and preventing leaks.
2. Seizing or Failure to Close
Traditional butterfly valves can seize over time, particularly when the shaft components are made from uncoated raw iron. In these cases, the valve can fail to close properly, causing operational issues. Double eccentric butterfly valves address this by using coated shafts and PTFE bearings, which resist wear and ensure that the valve operates smoothly without the risk of seizing.
Benefits of Double Eccentric Butterfly Valves
Double eccentric butterfly valves offer several key advantages that make them a preferred choice for a wide range of applications:
1. Leak-Free Design
The optimized design ensures tight shutoff and prevents leaks, even under high-pressure conditions.
2. Low Maintenance
With features like replaceable shaft seals, low-friction bearings, and a durable coating, these valves require minimal maintenance over their lifespan.
3. Versatility
These valves can be used in both underground and above-ground applications and are bi-directional, making them suitable for various flow control needs.
4. Cost-Effective
Double eccentric butterfly valves are more affordable than gate valves, particularly in large diameters, making them a cost-effective solution for many applications.
5. Long-Term Durability
The robust design, combined with the use of high-quality sealing materials and protective coatings, ensures that these valves can withstand the harshest conditions.
Conclusion
Double eccentric butterfly valves are a high-performance solution for fluid flow control in a wide range of industries. Their unique design offers several advantages over traditional valve types, including a leak-free operation, low maintenance requirements, and enhanced durability. Whether used in water treatment plants, chemical processing facilities, or oil and gas pipelines, these valves provide reliable and efficient performance, ensuring long-term operational efficiency and reducing total cost of ownership. Their versatility, cost-effectiveness, and ability to handle extreme conditions make them an ideal choice for many industrial and municipal applications.
