Valves are essential components in fluid control systems, responsible for regulating the flow of liquids, gases, and other materials. Two common types of valves used in various industrial and commercial applications are solenoid valves and butterfly valves. While both serve the same purpose of controlling fluid flow, they operate differently, have distinct constructions, and are suited for different applications. This article explores the differences between solenoid valves and butterfly valves, highlighting their function, construction, operation, applications, size, and cost to help you understand when and where each valve type is most suitable.

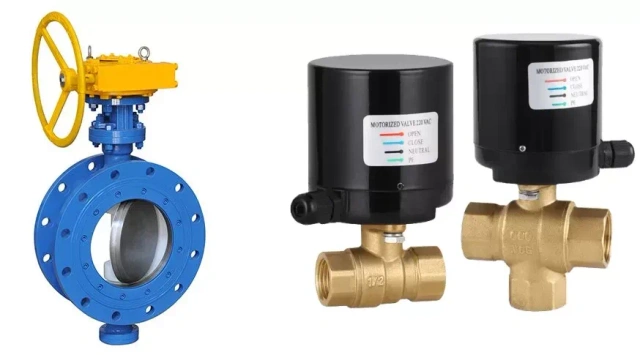

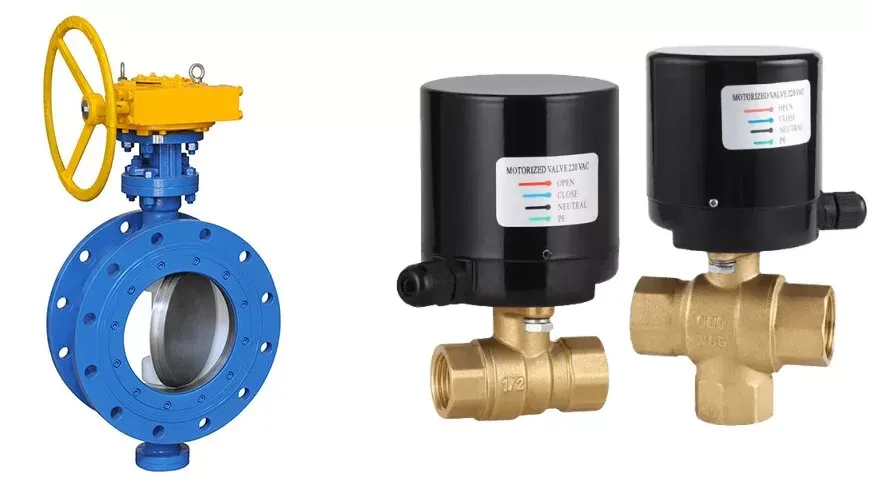

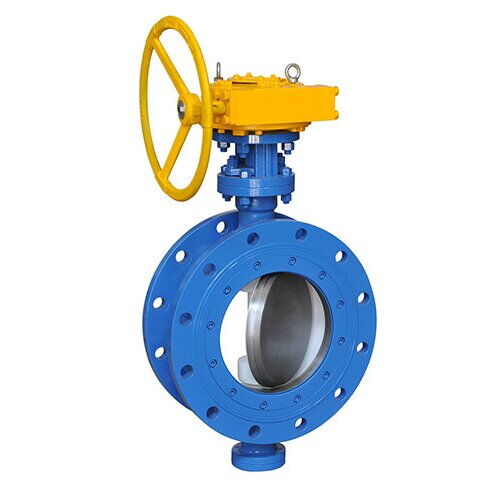

What is a Butterfly Valve?
A butterfly valve is a quarter-turn rotary valve, known for its simple and compact design. The valve consists of a disc positioned at the center of the flow path. The flow control is achieved by rotating this disc 90 degrees. When the disc is parallel to the flow path (a 90-degree turn), the fluid flows freely. When the disc is perpendicular to the flow path (a 0-degree turn), it blocks the flow.
Butterfly valves are commonly used in systems where rapid opening and closing are required. They can be operated manually via a lever or handle, or automatically with the help of an actuator (pneumatic, hydraulic, or electric). When paired with an actuator, butterfly valves provide precise control over the flow of fluids and are widely used in industries like HVAC, water treatment, and chemical processing.
Advantages of Butterfly Valves:
Compact design with minimal space requirements.
Quick response time and ease of operation.
Suitable for high-flow, low-pressure applications.
Cost-effective and versatile.

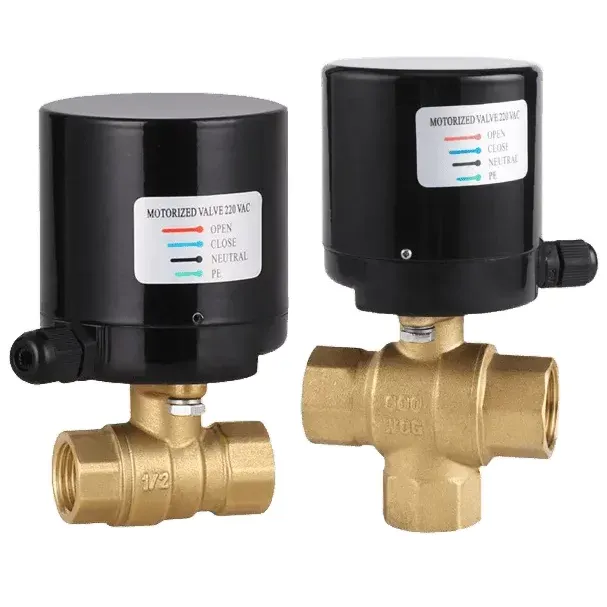

What is a Solenoid Valve?
A solenoid valve is an electromechanically operated valve that uses an electromagnetic coil to control fluid flow. When an electrical current is passed through the coil, it generates a magnetic field that moves a plunger inside the valve body. The plunger’s movement opens or closes the flow path, allowing or stopping the flow of fluid.
Unlike butterfly valves, solenoid valves are typically two-position valves. They are either fully open or fully closed. The primary advantage of solenoid valves is their ability to provide precise control over the fluid flow, and they are often used in systems where such precision is critical.
Advantages of Solenoid Valves:
Precise control over fluid flow.
Simple on/off function.
Ideal for automated systems requiring quick, electrical actuation.
Typically used in smaller flow systems compared to butterfly valves.
Key Differences Between Butterfly Valves and Solenoid Valves
1. Function:
Butterfly valves regulate the flow of fluids by rotating a disc to control the open or closed position.
Solenoid valves use an electromagnetic coil to move a plunger that opens or closes the valve, controlling the flow of fluids.
2. Construction:
Butterfly valves have a simple construction consisting of a body, stem, and disc.
Solenoid valves have a more complex design, including a valve body, solenoid coil, plunger, and a spring. They also require an electrical power source to operate.
3. Operation:
Butterfly valves are typically operated manually or with an actuator that rotates the disc to control the flow of fluids.
Solenoid valves operate electrically by energizing or de-energizing the solenoid coil to control the opening and closing of the valve.
4. Applications:
Butterfly valves are ideal for applications requiring rapid shutoff, low-pressure drop, and minimal space, such as HVAC systems, water treatment, and chemical processing.
Solenoid valves are used in applications where precise control is needed, such as medical equipment, semiconductor manufacturing, and automotive systems.
5. Size:
Butterfly valves are available in larger sizes (ranging from small to large diameter) and are suitable for applications requiring high flow rates, such as in large-scale industrial systems.
Solenoid valves are generally used for smaller-scale applications, typically for lower flow rates compared to butterfly valves.
6. Cost:
Butterfly valves are usually more affordable due to their simple design, making them a cost-effective solution for large-scale applications.
Solenoid valves tend to be more expensive than butterfly valves, as they require electrical components and are often used in specialized applications that demand higher precision.
Importance of Understanding the Differences
Understanding the differences between butterfly valves and solenoid valves is crucial for selecting the correct valve for a specific application. Each valve type has its strengths and limitations, and choosing the wrong one can lead to inefficiencies, increased maintenance costs, and even safety risks. For instance:
Using a butterfly valve in an application requiring precise flow control could result in poor performance, as these valves are better suited for applications with more straightforward on/off control.
On the other hand, using a solenoid valve in a high-flow application could result in inadequate flow control and system failure, as solenoid valves are typically designed for smaller flow capacities.
By understanding the operational principles, construction, and application areas of each valve type, you can ensure that the correct valve is chosen for your system, leading to optimal performance, reliability, and safety.
Choosing the Right Valve for Your Application
The choice between a butterfly valve and a solenoid valve largely depends on the specific needs of your application. Below are some factors to consider when making your decision:
Flow Requirements
If your system requires handling high flow rates or large diameter pipelines, a butterfly valve is likely the better option due to its larger size range.
Precision
If you need precise control of fluid flow, such as in medical or automated systems, a solenoid valve may be more suitable.
Space Constraints
Butterfly valves are compact and ideal for systems with limited space. However, solenoid valves are typically used in smaller, more confined systems.
Cost
If you're working with a tight budget, a butterfly valve is generally more affordable and cost-effective, especially for larger-scale applications.
Automation
If automation and remote control are essential, both valves can be used with actuators, but solenoid valves are more commonly used in automated systems.
Conclusion
Both butterfly valves and solenoid valves play essential roles in fluid control systems, but understanding their differences is key to selecting the most appropriate valve for your application. Butterfly valves are ideal for high-flow systems requiring rapid shutoff and space efficiency, while solenoid valves are perfect for smaller systems that demand precise, electrical control over the flow of fluids. By choosing the right valve type based on your system's needs, you can optimize performance, reduce maintenance costs, and ensure safe, efficient operation.
In any case, understanding the key differences between these two valve types will guide you in making an informed decision, leading to better system performance and reliability. Whether you are working on large-scale industrial processes or small, automated systems, there is a valve type that suits your needs.
