Pneumatic Globe Control Valve: A Comprehensive Guide

Control valves are essential components in industrial fluid systems, ensuring precise regulation of flow, pressure, and temperature. Among the various types of control valves, the pneumatic globe control valve stands out due to its accuracy, reliability, and automation capabilities.

This article provides an in-depth exploration of pneumatic globe control valves, covering their working principles, design features, applications, installation guidelines, and maintenance best practices.

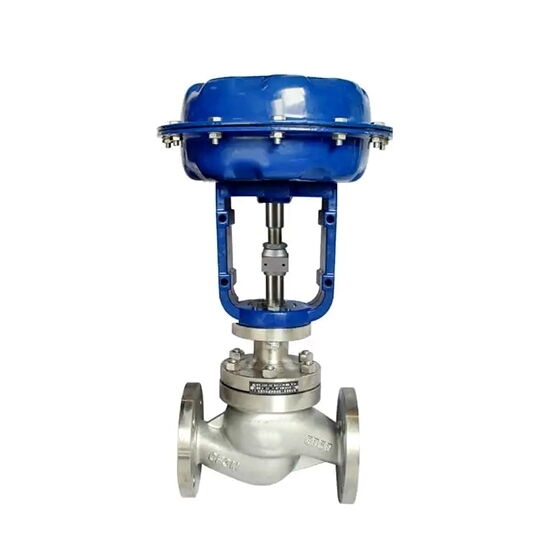

A pneumatic globe control valve is a flow regulation device that combines the precise throttling capabilities of a globe valve with the automation efficiency of a pneumatic actuator. It uses compressed air or gas as a power source to adjust the valve’s position, enabling remote and automated control of fluid processes.

These valves are widely used in industries such as oil and gas, chemical processing, power generation, and water treatment, where precise flow control is critical.

Automated operation – Controlled via pneumatic signals for quick response.

High precision – Allows fine-tuning of flow, pressure, and temperature.

Durability – Constructed from robust materials like stainless steel, cast iron, or heat-resistant alloys.

Versatility – Suitable for high-pressure, high-temperature, and corrosive fluids.

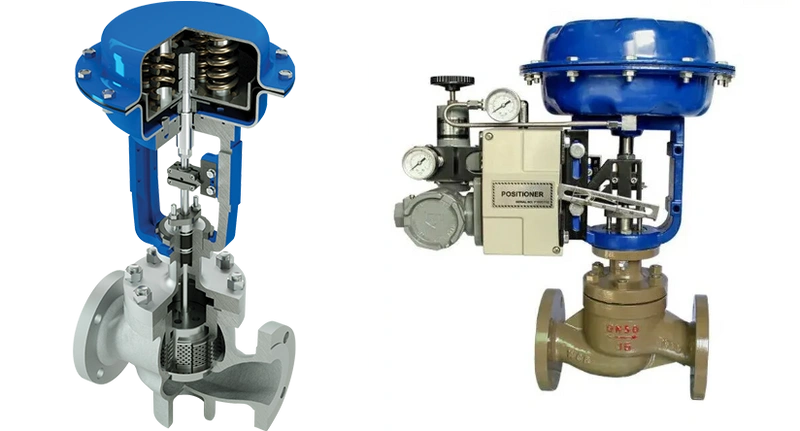

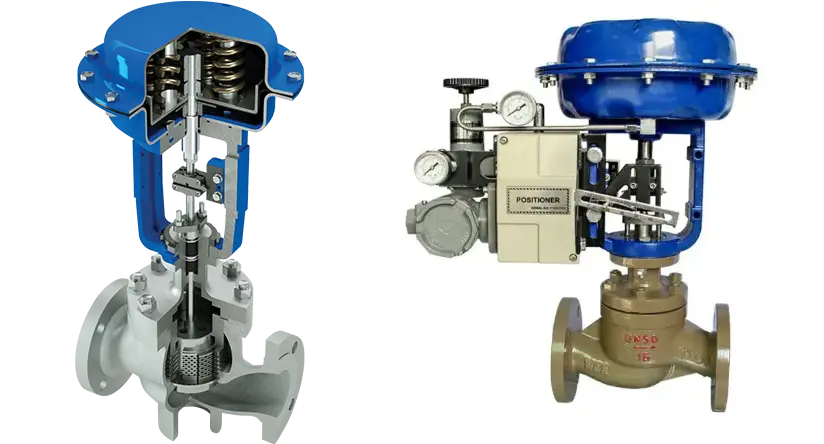

The operation of a pneumatic globe control valve involves two main components:

Pneumatic Actuator – Converts compressed air energy into mechanical motion.

Globe Valve Body – Regulates fluid flow through a movable plug or disc.

Pneumatic globe control valves play a critical role in automated process control systems by regulating fluid flow based on varying control signals. These valves rely on compressed air to actuate the valve stem and modulate flow with high precision. Here is a detailed breakdown of how they operate step by step:

The process begins with the control system sending a pneumatic signal—usually in the range of 3 to 15 psi (0.2 to 1.0 bar)—to the valve’s actuator. This signal corresponds to the desired valve position based on process parameters such as pressure, temperature, or flow rate.

Once the actuator receives the air signal, it converts this pneumatic pressure into mechanical motion. Depending on the actuator type, a diaphragm or piston moves either linearly or rotationally. In globe valves, linear motion is most common, as it aligns with the vertical movement of the valve stem.

The actuator’s mechanical motion is transmitted to the valve stem. As the stem moves up or down, it positions the valve’s internal plug or disc accordingly. The plug travels toward or away from the seat within the valve body.

As the plug approaches the seat, it restricts the flow path, reducing the flow rate. Conversely, when the plug lifts away from the seat, the flow path opens, allowing more fluid to pass through. This precise modulation of the flow area enables accurate control of process variables, ensuring system stability and efficiency.

Pneumatic globe control valves are widely used across industries due to their responsiveness, reliability, and ability to handle varying flow conditions with high accuracy.

Globe valves are essential components in flow control systems, and their body design plays a key role in how they manage flow direction, pressure, and turbulence. There are three primary types of globe valve body patterns: straight, angle, and oblique.

The straight-pattern globe valve features a linear design with the inlet and outlet ports positioned directly opposite each other. This type is commonly used in applications where minimal changes in flow direction are desired, offering a simple structure that's easy to install and maintain. However, it tends to create higher pressure drops due to the flow path’s sharp turns.

The angle-pattern globe valve has a 90-degree port orientation, allowing the flow to change direction in a single smooth turn. This configuration is ideal for systems where space is limited or piping layouts require a right-angle connection. It also reduces pressure drop compared to the straight-pattern valve.

The oblique-pattern globe valve, also known as a Y-pattern valve, is engineered for applications that involve high-pressure drops. Its angled design allows for a smoother flow path, reducing turbulence and energy loss. This makes it a preferred choice in critical services where pressure and flow stability are essential.

Pneumatic globe control valves are built to withstand harsh conditions. Common materials include:

Cast Iron – Economical, used in low-pressure water and steam systems.

Stainless Steel – Resistant to corrosion, ideal for chemical and food processing.

Carbon Steel – High strength, suitable for high-temperature applications.

Alloy Steel – Used in extreme pressure and temperature environments.

Diaphragm Actuators – Most common, providing smooth linear motion.

Piston Actuators – Higher force output, used in high-pressure systems.

Rack-and-Pinion Actuators – Converts linear motion to rotary for quarter-turn valves.

Plug/Disc – The moving part that regulates flow.

Seat – The stationary surface that the plug contacts to shut off flow.

Stem – Connects the actuator to the plug.

Bonnet – Houses the stem and packing to prevent leaks.

Due to their precise control capabilities, these valves are used in:

Flow control in pipelines.

Pressure regulation in refineries.

Handling corrosive and viscous fluids.

Precise dosing in reactors.

Steam flow control in boilers.

Cooling water regulation.

Flow modulation in filtration systems.

Chemical injection control.

Proper installation ensures optimal performance and longevity. Key considerations include:

Install vertically with the stem upright to prevent fluid accumulation.

For horizontal pipes, use angle or oblique globe valves to avoid clogging.

Ensure proper alignment to prevent stress on the valve body.

Use gaskets and seals to avoid leaks.

Verify air supply pressure (typically 4-20 mA or 3-15 psi).

Check signal lines for proper connection.

Clean valve internals – Remove deposits from the plug and seat.

Lubricate moving parts – Prevents sticking and wear.

Inspect seals and gaskets – Replace if damaged.

Pneumatic globe control valves are indispensable in industries requiring precise fluid regulation. Their combination of robust construction, automation compatibility, and high accuracy makes them a preferred choice for engineers.

By following proper installation and maintenance practices, these valves can deliver long-lasting, reliable performance in even the most demanding applications.

For optimal results, always consult manufacturer guidelines and industry standards when selecting, installing, and servicing pneumatic globe control valves.
