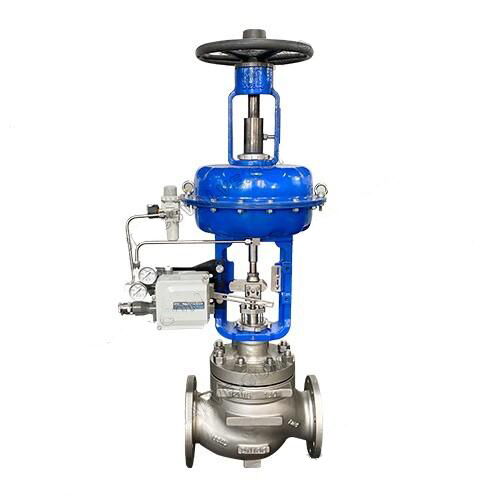

Multi Hole Cage Guided Control Valve, WCB, 1-1/2-24 Inch, RF
Key Specifications / Features
Model No.: Hits: 1
As a leading provider of multi-hole cage-guided control valves, we offer solutions in sizes ranging from 1-1/2 to 24 inches and pressure classes of 150 to 2500 LB. Constructed from high-quality carbon steel (ASTM A216 WCB), these valves meet DN40 to DN600 standards and PN16 to PN420 ratings. Featuring a raised face (RF) flanged end, our control valves ensure exceptional flow control and reliability across various industrial applications. Choose our multi-hole cage-guided control valves for enhanced performance and durability.
Request a quoteTags
Detail Information
Products Name: Multi Hole Cage Guided Control Valve
Size: 1-1/2-24 Inch, DN40-DN600
Pressure: Class 150-2500 LB, PN16-PN420
Material: Carbon Steel, ASTM A216 WCB
End: RF
Temperature Range: -196°C - 550°C
Seat Leakage: ANSI Ⅳ (0.01%) or Ⅵ (bubble-tight)
Bonnet Type: Standard, Long-Extension, Bellows, Steam Jacket
Design:
• The multi-hole cage guided control valve excels in noise reduction, making it ideal for steam evacuation and other applications where quiet operation is critical.
• High-velocity fluids with significant pressure differences can cause severe erosion and noise in valves. The multi-hole cage effectively addresses these issues by reducing flow velocity and energy upon impact, and by expanding gas volume to decrease pressure and velocity for upward gas flows.
• The multi-hole cage is interchangeable with the standard cage, and other valve components are shared, allowing for streamlined inventory management, reduced storage needs, and faster delivery times.
Size: 1-1/2-24 Inch, DN40-DN600
Pressure: Class 150-2500 LB, PN16-PN420
Material: Carbon Steel, ASTM A216 WCB
End: RF
Temperature Range: -196°C - 550°C
Seat Leakage: ANSI Ⅳ (0.01%) or Ⅵ (bubble-tight)
Bonnet Type: Standard, Long-Extension, Bellows, Steam Jacket
Design:
• The multi-hole cage guided control valve excels in noise reduction, making it ideal for steam evacuation and other applications where quiet operation is critical.
• High-velocity fluids with significant pressure differences can cause severe erosion and noise in valves. The multi-hole cage effectively addresses these issues by reducing flow velocity and energy upon impact, and by expanding gas volume to decrease pressure and velocity for upward gas flows.
• The multi-hole cage is interchangeable with the standard cage, and other valve components are shared, allowing for streamlined inventory management, reduced storage needs, and faster delivery times.
