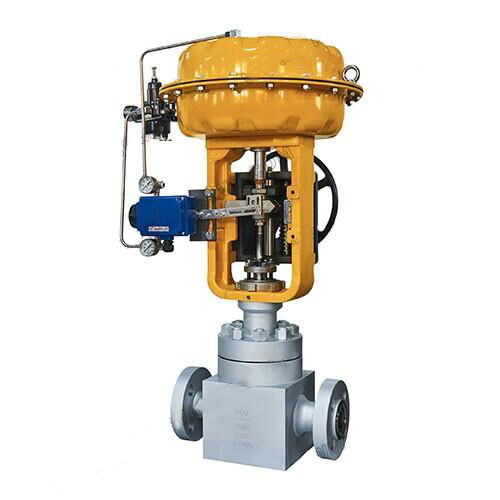

High Pressure Control Valves, SS, 1-1/2-2 Inch, 150-2500 LB
Key Specifications / Features
Model No.: Hits: 6
Introducing our high-pressure control valves, expertly crafted from forged stainless steel for superior durability and performance. Designed for pipe sizes ranging from 1-1/2 to 2 inches and available in pressure classes from 150 to 2500 LB, these valves ensure stable fluid control without cavitation damage. Ideal for demanding applications, our valves provide reliable operation and long-lasting service, making them a perfect choice for your industrial needs.
Request a quoteTags
Detail Information
Products Name: High Pressure Control Valves
Size: 1-1/2-2 Inch, DN40-DN50
Pressure Rating: Class 150-2500 LB, PN16-PN420
Material: Stainless Steel
End: Flanged, Butt Weld, Socket Weld.
Temperature Range: -196℃-550℃
Seat Leakage: ANSI Ⅳ (0.01%) or Ⅵ (bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension
Design:
• Designed for high-pressure environments and compatible with challenging fluids such as slurry, polymer crystals, and high-temperature media.
• Features a straightforward design that facilitates easy maintenance, making it an economical choice for control valve applications.
• Due to its unbalanced trim structure, this series is best suited for smaller valve sizes, with a maximum size limit of 2 inches.
Advantages:
• Particularly effective for controlling fluids with high viscosity, suspended solids, and granules, while preventing issues such as coking, bonding, and blockages.
• In high-pressure applications, the valve's side-in, bottom-out flow design directs the flow through the cage before reaching the plug and seat. This approach minimizes direct erosion of the sealing surfaces, thereby extending the valve's service life.
Size: 1-1/2-2 Inch, DN40-DN50
Pressure Rating: Class 150-2500 LB, PN16-PN420
Material: Stainless Steel
End: Flanged, Butt Weld, Socket Weld.
Temperature Range: -196℃-550℃
Seat Leakage: ANSI Ⅳ (0.01%) or Ⅵ (bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension
Design:
• Designed for high-pressure environments and compatible with challenging fluids such as slurry, polymer crystals, and high-temperature media.
• Features a straightforward design that facilitates easy maintenance, making it an economical choice for control valve applications.
• Due to its unbalanced trim structure, this series is best suited for smaller valve sizes, with a maximum size limit of 2 inches.
Advantages:
• Particularly effective for controlling fluids with high viscosity, suspended solids, and granules, while preventing issues such as coking, bonding, and blockages.
• In high-pressure applications, the valve's side-in, bottom-out flow design directs the flow through the cage before reaching the plug and seat. This approach minimizes direct erosion of the sealing surfaces, thereby extending the valve's service life.
