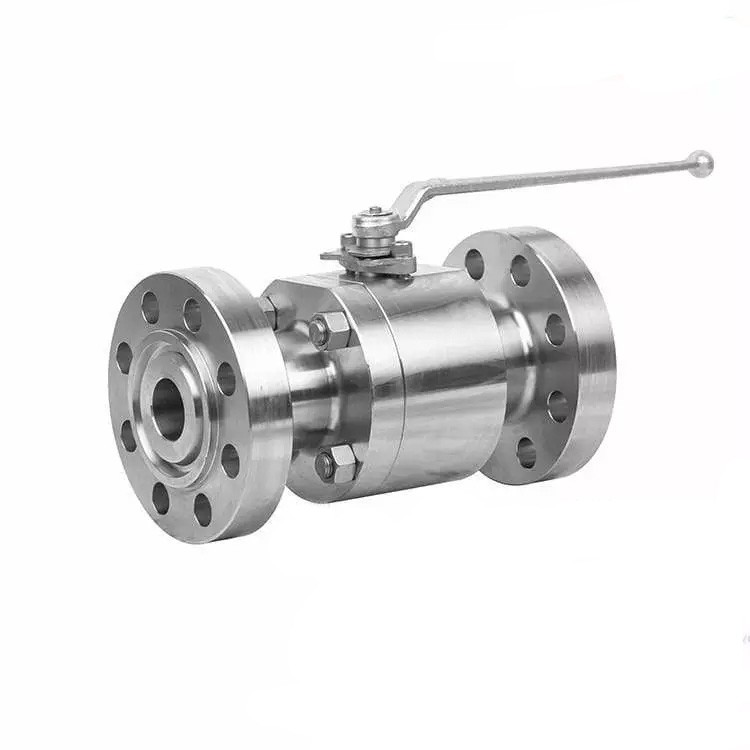

Hard Seal Floating Ball Valve, ASTM A182 316L, 2 IN, 1500 LB
Key Specifications / Features
Model No.: WV-231226-FBV-13 Hits: 16
Our Hard Seal Floating Ball Valve, constructed from high-quality ASTM A182 316L stainless steel, ensures corrosion resistance and durability. The DN50 size, 2 Inch dimensions, and Class 1500 LB rating make it suitable for a variety of high-pressure applications. Compliant with API 608, GOST, and DIN standards, this valve meets rigorous industry specifications, providing reliability and safety in fluid control applications.
Request a quoteTags
Detail Information
Name: 3 Piece Floating Ball Valve
Standard: API 608, Gost, DIN
Size: DN50, 2 Inch
Pressure: Class 1500 LB, PN250
Material: Stainless Steel 316L
Temperature Of Media: -29℃ To 120℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: Thread BSP NPT, Female Thread/OD Size, threaded, Female, RF, RTJ, SW
Feature: Flange Hard Seal Manual High Pressure Fixed
Antistatic feature:
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-2500 LB
End: SW, RF, RTJ
Design Feature: Full or Reduced Bore, Bolted bonnet, Anti-Static Device, Anti-Blow out Stem, Cryogenic or High Temperature, Extended Stem, Single, two and three piece constructions, Soft and metal-seated, Screwed, socket-weld and flanged ends, Variety of actuation options, Fire-safe to ISO 10497 and API 607, Mirror-finished solid stainless ball, Fine-grained PTFE seats, Cavity Pressure Relief mechanism, Blowout-proof stem, High integrity stem sealing – Belleville springs compensate for wear and thermal expansions
Standard: API 608, Gost, DIN
Size: DN50, 2 Inch
Pressure: Class 1500 LB, PN250
Material: Stainless Steel 316L
Temperature Of Media: -29℃ To 120℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: Thread BSP NPT, Female Thread/OD Size, threaded, Female, RF, RTJ, SW
Feature: Flange Hard Seal Manual High Pressure Fixed
Antistatic feature:
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: Class 150-2500 LB
End: SW, RF, RTJ
Design Feature: Full or Reduced Bore, Bolted bonnet, Anti-Static Device, Anti-Blow out Stem, Cryogenic or High Temperature, Extended Stem, Single, two and three piece constructions, Soft and metal-seated, Screwed, socket-weld and flanged ends, Variety of actuation options, Fire-safe to ISO 10497 and API 607, Mirror-finished solid stainless ball, Fine-grained PTFE seats, Cavity Pressure Relief mechanism, Blowout-proof stem, High integrity stem sealing – Belleville springs compensate for wear and thermal expansions
| Item | Ball valve |
| Certification | CE, TS, ISO9001, ISO14001, ISO18001 |
| Power | Manual |
| Connection form | Flange |
| Body material | A182 F304 |
| Medium | Water, Steam, Oil |
| Pressure | 1500LB |
| Temperature | -29~200 |
| Seal form | double seal |
| Feature | Easy disassembly and assembly |
