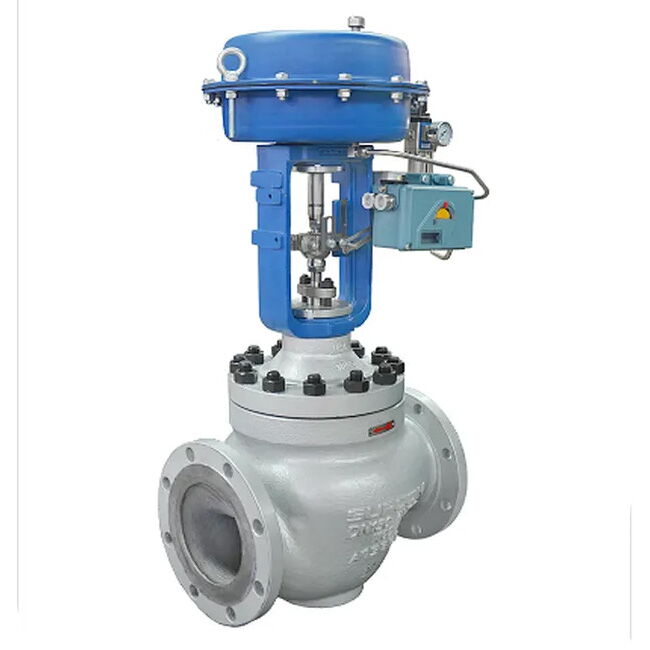

Cage Guided Control Valve, Alloy Steel, 18 Inch, 150 LB, RF
Key Specifications / Features
Model No.: Hits: 3
Our cage-guided control valve supplier offers 18-inch valves rated at Class 150 LB. Available in carbon, stainless, and alloy steel materials, these valves feature pressure balancing types and RF end connections, operated by pneumatic diaphragm actuators.
Request a quoteTags
Detail Information
Product Name: Cage Guided Control Valve
Size: 18 Inch, DN450
Pressure rating: Class 150 LB, PN20
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
End connection: RF
Operation: Pneumatic diaphragm actuator, PCL pneumatic piston actuator, Electric actuator
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL
Feature:
• Typically integrated with a pneumatic actuator or motorized valve, it is perfect for flow control applications that demand excellent dynamic stability, minimal noise, and tight sealing.
• It ensures efficient and reliable performance in challenging process conditions, such as those with significant pressure differentials and substantial temperature fluctuations.
• Additional features available include noise reduction trims, anti-cavitation designs, and a variety of balanced seal options to accommodate diverse pressure and temperature specifications.
• The balanced trim design enables the use of smaller actuators, thereby reducing the overall size and weight of the assembly.
• The cage-guided construction provides dynamic support and maintains trim alignment, resisting vibration induced by flow throughout the valve's operating stroke. The robust guidance of the plug enhances the throttling control, leading to superior process efficiency.
Size: 18 Inch, DN450
Pressure rating: Class 150 LB, PN20
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
End connection: RF
Operation: Pneumatic diaphragm actuator, PCL pneumatic piston actuator, Electric actuator
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL
Feature:
• Typically integrated with a pneumatic actuator or motorized valve, it is perfect for flow control applications that demand excellent dynamic stability, minimal noise, and tight sealing.
• It ensures efficient and reliable performance in challenging process conditions, such as those with significant pressure differentials and substantial temperature fluctuations.
• Additional features available include noise reduction trims, anti-cavitation designs, and a variety of balanced seal options to accommodate diverse pressure and temperature specifications.
• The balanced trim design enables the use of smaller actuators, thereby reducing the overall size and weight of the assembly.
• The cage-guided construction provides dynamic support and maintains trim alignment, resisting vibration induced by flow throughout the valve's operating stroke. The robust guidance of the plug enhances the throttling control, leading to superior process efficiency.
